Kirloskar Generator

Get a Price/Quote

MOQ : 1 Unit

Kirloskar Generator Specification

Standard
ISO 9001 Certified

Engine Model
Kirloskar 6SL9088TAG2

Protection Class
IP23

Insulation
Class H

Bore *Stroke
116 mm x 146 mm

Poles Number
4

Pressure
Compression Ratio 16.5:1

Dimension (L*W*H)
3350 mm x 1200 mm x 1750 mm

Fuel Consumption
23-26 Ltr/hr (at 100% load)

Engine Type
4 Stroke, Inline, Turbocharged, Aftercooled

Alternator
Stamford / Kirloskar Brushless Alternator

Fuel Tank Capacity
250 Litres

Product Type
Generator

Output Type
AC Single & Three Phase

Rated Power
125 kVA

Rated Voltage
440 Volt (V)

Starting Type
Electric Start

Rated Frequency
50 Hertz (HZ)

Power Range
110 - 125 kVA

Color
Green

Cooling System
Water Cooled

Noise Level
75 dB(A) at 1 meter under free field conditions

Phase
Three Phase

Speed
1500 RPM

Weight
2350 kg

Air Intake System
Turbocharged & Aftercooled

Battery Capacity
180 AH

Emission Norms
CPCB II Compliant

Governing Type
Electronic / Mechanical

Control Panel
Digital/AMF Panel

Fuel Type
High-Speed Diesel

Application
Industrial, Commercial, Residential Backup Power

Altitude Capability
Up to 1000 meters above sea level without derating

Frequency Regulation
1%

Safety Features
Low Oil Pressure, High Water Temperature, Over-Speed Shutdown

Lubricating Oil Sump Capacity
24 Litres

Voltage Regulation
1% (No Load to Full Load)

Duty Cycle
Continuous Rated

Kirloskar Generator Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
1 Months

Sample Available
No

Main Export Market(s)
Asia

Certifications
ISO 9001 2008

About Kirloskar Generator

As Client Is Dealing On Below Location

Delhi, Gujarat, Haryana, Uttar Pradesh, Rajasthan, Uttarakhand

Jakson Genset Model	KVA	KW	Current AMP.	KOEL Engine Model	Engine BHP	Overall silent DG Set Dimensions (mm) Length x Width x Height + (HOOD /Silencer)	App. Weight Kg.
Air Cooled
KG1-15AS	15	12	20.9	HA294G1	20.5	1772x1050x1408(415)	950
KG1-20AS	20	16	27.8	HA394TCI G1	32	2132x1050x1517(435)	1150
KG1-25AS	25	20	34.8	HA394TCI G1	32	2132x1050x1517(435)	1180
KG1-30AS1	30	24	41.7	HA394TCI G2	40	2132x1050x1517(435)	1200
KG1-35AS	35	28	48.7	HA494TCI G1	56	2423x1050x1700(446)	1350
KG1-40AS	40	32	55.6	HA494TCI G1	56	2423x1050x1700(446)	1370
KG1-62.5AS	50/62.5	40/50	69.5/86.9	HA694TCI G1	83	3176x1200x1633(428)	1750
Water Cooled
KG1-20WS	15	12	20.9	2R1040G1	25.5	2100x950x1221(360)	950
KG1-20WS	20	16	27.8	2R1040G1	25.5	2100x950x1221(360)	970
KG1-25WS1	25	20	34.8	3R1040TG1	42	2350x950x1230(360)	1100
KG1-30WS	30	24	41.7	3R1040TG1	42	2350x950x1230(360)	1150
KG1-35WS	35	28	48.7	3R1040TA1	56	2575x1050x1448(390)	1325
KG1-40WS	40	32	55.6	3R1040TA G1	56	2575x1050x1448(390)	1340
KG1-45WS	45	36	62.6	3R1040TA G1	56	2575x1050x1448(390)	1350
KG1-62.5WS	62.5	50	87.0	4R810TAG1	83	2800x1100x1595(405)	1550
KG1-82.5WS	75/82.5	60/66	104.4/114.8	4R1040TAG1	102	3240x1100x1595(529)	1800
KG1-100WS	100	80	139.2	4K1080TAG2	156	3200x1300x1795(483)	2250
KG1-125WS	125	100	173.9	4K1080TAG2	156	3200x1300x1795(483)	2280
KG1-125WS1	125	100	173.9	6R1080TAG1	175	3690x1350x1913(468)	2600
KG1-140WS	140	112	194.9	6K1080TAG2	200	4040x1495x1916(472)	2980
KG1-160WS	160	128	222.6	6K1080TAG2	200	4040x1495x1916(472)	3010
KG1-180WS1	180	144	250.2	6SL 1500TAG2	248	4340x1740x1975(750)	4250
KG1-200WS1	200	160	278.2	6SL1500TAG2	248	4340x1740x1975(750)	4300
KG1-250WS	250	200	347.5	6SL1500TAG3	310	4340x1740x1975(750)	4320
KG1-320WS	320	256	445.2	DV8TA G1	400	5109x2000x2408(592)	6650
KG1-380WS	380	304	528.2	DV8TA G2	470	5375x2000x2408(600)	6900
KG1-400WS	400	320	556.9	DV8TA G3	490	5655x2120x2408(612)	6950
KG1-500WS1	500	400	695.6	DV10TA G1	608	5659x2000x2708(622)	7800
KG1-600WS	600	480	834.7	DV12TA G1	723	6500x2000x2710(774)	9100
KG1-625WS	625	500	869.5	DV12TA G2	750	6500x2000x2710(774)	9150
KG1-750WS	750	600	1042.5	DV12ETA G1	900	6800x2300x2713(774)	9200

Efficient Power and Performance

Delivering a rated power of 125 kVA at 1500 RPM, this generator meets varied power demands with exceptional stability. Its turbocharged and aftercooled air intake system, digital control panel, and class H insulation provide optimum efficiency and longevity for heavy-duty applications.

Robust Safety and Compliance

Kirloskar's generator comes with comprehensive safety features, including low oil pressure and high water temperature sensors, alongside an over-speed shutdown system. It adheres to stringent CPCB II emission standards and is ISO 9001 certified, ensuring environmentally conscious operation.

Easy Operation and Maintenance

Electrically started and supported by a 180 AH battery, this generator simplifies usage through its Digital/AMF panel. Its 24-litre oil capacity and 250-litre fuel tank provide extended intervals between refueling and maintenance, reducing operational interruptions.

FAQ's of Kirloskar Generator:

Q: How do I operate the Kirloskar 125 kVA generator for backup power?

A: To operate, use the electric starter and monitor functions via the Digital/AMF panel. Ensure sufficient fuel and oil levels for continuous operation, and confirm that all safety interlocks are active for optimal protection.

Q: What applications is this Kirloskar generator suitable for?

A: This generator is ideal for industrial, commercial, and residential backup power, supporting continuous duty cycles in settings such as manufacturing plants, office complexes, hospitals, and large residences.

Q: When should maintenance be performed on the generator?

A: Routine maintenance should follow the manufacturer's guidelines, typically after specific operational hours or as indicated by control panel alerts. Regular checks of oil, coolant, air filters, and battery condition help ensure reliable service.

Q: Where can the Kirloskar generator be installed?

A: The generator is designed for both indoor and outdoor installations, providing reliable operation up to 1000 meters above sea level without derating. Proper ventilation and adherence to safety distances are essential during setup.

Q: What are the process steps for starting the generator?

A: Check fuel and oil levels, inspect for leaks, confirm that all safety systems are active, turn on the battery, and initiate starting via the Digital/AMF panel. The generator will automatically regulate frequency and voltage to maintain load demands.

Q: How does the generator benefit high-demand environments?

A: It delivers stable voltage and frequency (1% regulation), supports continuous rated cycles, and houses a large fuel tank for extended operation-key benefits for critical power requirements in commercial and industrial situations.

Q: What usage tips prolong the generator's lifespan?

A: Regularly monitor key indicators like oil pressure, water temperature, and fuel level. Schedule preventive maintenance, keep air filters clean, and ensure periodic load testing to maintain performance and longevity.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in kirloskar Green Silent Generator Category

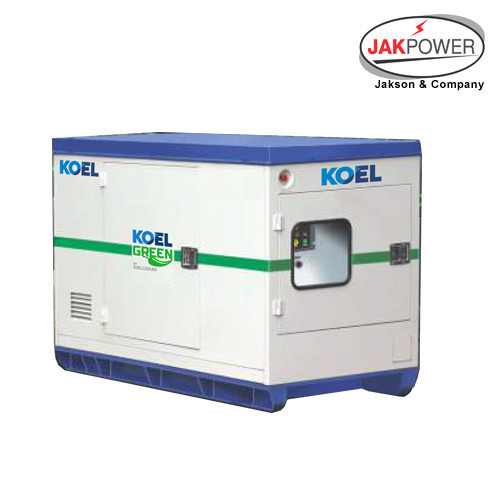

Air Cooled Kirloskar Generator
